Return Data Model

Overview

Enterprise teams often need more than “who the user is.” They also need to answer: “How was this identity verified, and how much can I trust it?” Hopae Connect returns a structured payload containing normalized user attributes alongside a dedicated hopae_provenance object. This object tells the complete story of the verification: who vouched for the identity, how it was presented, and what checks passed.

Example Responses

// The ID Token focuses on the user and the trust level. It's lightweight and ideal for session management.
{
  "iss": "https://sandbox.connect.hopae.com",
  "aud": "YOUR_CLIENT_ID",
  "sub": "wPqH84Q4pDiE4qWWIfGeMQcoctqYfNVf",
  "acr": "urn:hopae:loa4",
  "amr": ["pin"],
  "hopae_loa": 4,
  "name": "Jane Q. Citizen",
  "given_name": "Jane Quincy",
  "family_name": "Citizen"
  "birthdate": "1992-02-02",
  "missingAttributes": ["phone_number", "address"]
}

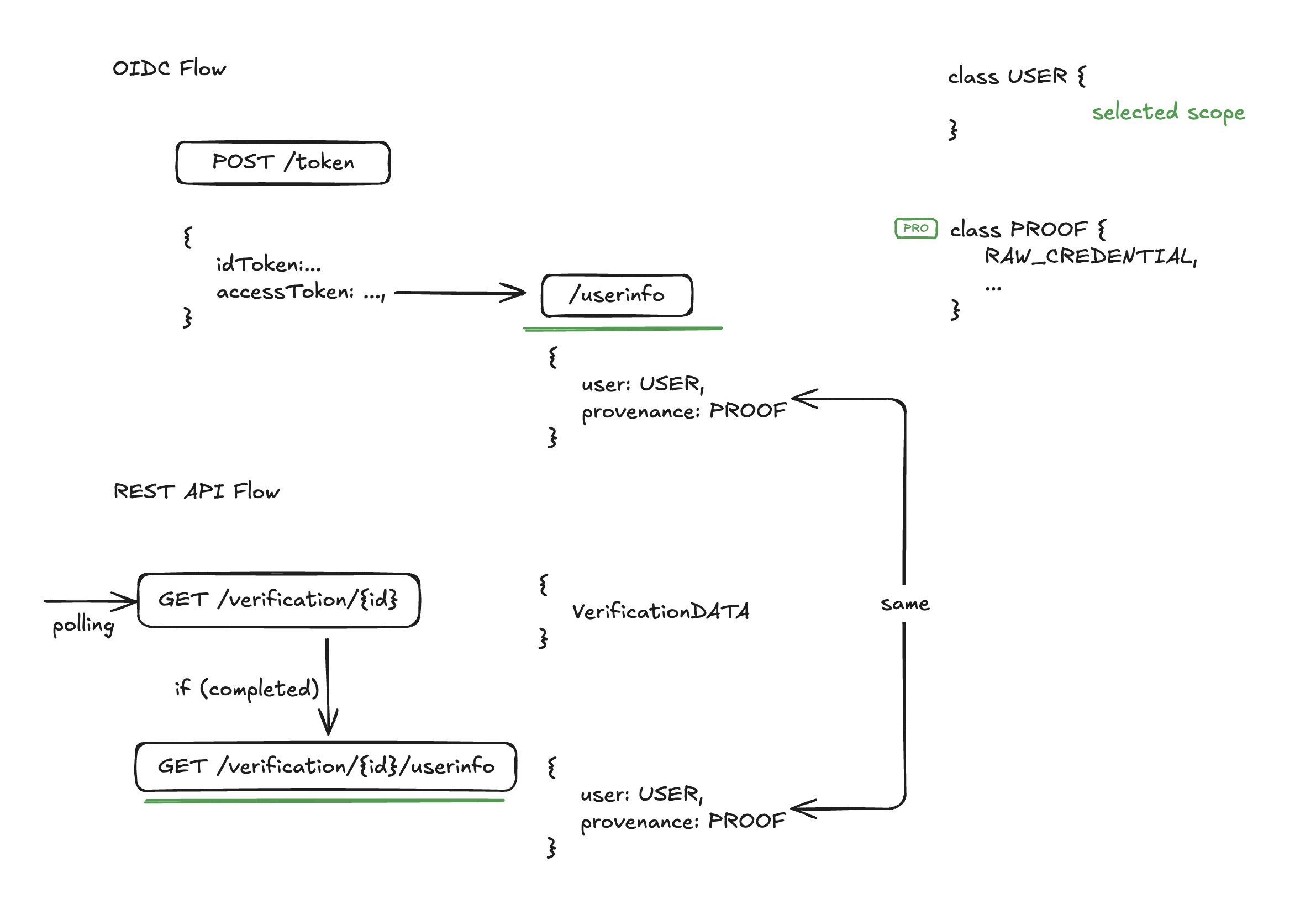

UserInfo Payload Structure

Here is a conceptual map of the UserInfo payload. This tree view shows how the data is organized, with a brief explanation for each major component. For detailed field specifications, refer to the Schema Tables that follow this section.

{
  // --- Standard Claims ---
  "sub": "...",                // Who is the user? (The unique ID)
  "name": "...",               // What are their attributes? (Normalized user data)
  "birthdate": "...",          //

  // --- Assuarance Data
  "acr": "...",                // How much can I trust this? (The assurance level)
  "hopae_loa": "...",

  // --- The Verification Story ---
  "hopae_provenance": {
    "presentation": {          // The story of *how* the identity was presented.

      // The technology channel used for the interaction.
      "channel": {
        "type": "...",
        "transport": "..."
      },

      // A list of documents presented and verified.
      "credentials": [
        {
          "type": "...",       // What kind of document is this?
          "issuer": { ... },   // Who vouches for this document?
          "evidence": [ ... ], // What is the proof of its authenticity?
          "claims": { ... }    // Origial raw issuer data field
        }
      ]
    },

    // Operational data for the verification event.
    "_metadata": {
      "verification_id": "...",
      "verified_at": "..."
    }
  }
}

Schema Tables

The following tabs provide a detailed field-by-field reference for the structures outlined above.

These are standard OpenID Connect claims representing the user’s identity.

Field	Type	Required	Notes/Example
`sub`	string	Yes	Pairwise user id
`name`	string	No	Display name
`given_name`	string	No
`family_name`	string	No
`middle_name`	string	No
`nickname`	string	No
`preferred_username`	string	No
`profile`	string	No	URL
`picture`	string	No	URL
`website`	string	No	URL
`gender`	string	No	`female`, `male`, `other`
`birthdate`	string	No	`YYYY-MM-DD`
`zoneinfo`	string	No	IANA time zone
`locale`	string	No	BCP 47 (`en-US`)
`email`	string	No	`user@example.com`
`email_verified`	boolean	No	true/false
`phone_number`	string	No	E.164 (`+1415555…`)
`phone_number_verified`	boolean	No	true/false
`address`	object	No	See Address structure below
`updated_at`	number	No	Unix timestamp
`nationality`	string	No	ISO 3166-1 alpha-2

Address Claim Structure

Field	Type	Notes/Format
`formatted`	string	Multi-line, display-ready
`street_address`	string	Street/house/PO Box
`locality`	string	City
`region`	string	State/Province/Region
`postal_code`	string	ZIP/Postal code
`country`	string	ISO 3166-1 alpha-2

Other Verification Examples

The data model is flexible enough to represent various verification methods. Note that some examples may include the optional claims field to show the raw, source-specific data returned by the issuer before normalization.

Remote eID (Belgium Itsme) — API Verification

This example represents a user verifying their identity through a remote, API-based electronic ID service like Belgium’s Itsme. It includes the optional claims object, which contains the original, non-normalized data from the source.

{
  "sub": "aBcDeFgH12345678iJkLmNoPqRsTuVw",
  "acr": "urn:hopae:loa4",
  "hopae_provenance": {
    "presentation": {
      "channel": {
        "type": "api",
        "transport": "internet"
      },
      "credentials": [{
        "type": "EIDAS:eID_Belgium",
        "issuer": {
          "id": "did:issuer:eu-eidas-be-itsme",
          "authority_name": "Itsme (Belgian Mobile ID)"
        },
        "claims": {
          "voornamen": "Jane Quincy",
          "familienaam": "Citizen",
          "geboortedatum": "1992-02-02",
          "rijksregisternummer": "92.02.02-999.99"
        },
        "evidence": [
          {
            "type": "api_verification",
            "verifications": { "eidas_level_high_assured": true }
          }
        ]
      }]
    },
    "_metadata": { "verification_id": "vrf_api_be_itsme_123" }
  }
}

ePassport (FR) — NFC Verification via Visogo SDK

This scenario shows a user verifying their identity by scanning the chip of their physical French ePassport using a mobile application powered by the Visogo SDK. The phone’s NFC reader is used to communicate directly with the passport chip.

{
  "sub": "xYzAbCdE87654321fGhIjKlMnOpQrSt",
  "acr": "urn:hopae:loa4",
  "hopae_provenance": {
    "presentation": {
      "channel": {
        "type": "sdk_embedded",
        "transport": "NFC"
      },
      "credentials": [{
        "type": "ICAO-9303:ePassport",
        "issuer": {
          "id": "did:issuer:fr-ants",
          "authority_name": "Agence Nationale des Titres Sécurisés"
        },
        "evidence": [
          {
            "type": "chip_verification",
            "verifications": { "passive_authentication_valid": true, "chip_authentication_valid": true }
          }
        ]
      }]
    },
    "_metadata": { "verification_id": "vrf_nfc_fr_visogo_456" }
  }
}

mDL (US‑CA) — Samsung Wallet Remote Presentation

This example shows a user presenting their mobile Driver’s License (mDL) from their Samsung Wallet. The verification happens remotely over the internet, not via NFC or QR.

{
  "sub": "wPqH84Q4pDiE4qWWIfGeMQcoctqYfNVf",
  "acr": "urn:hopae:loa4",
  "hopae_provenance": {
    "presentation": {
      "channel": {
        "type": "app_wallet",
        "transport": "internet"
      },
      "credentials": [{
        "type": "ISO18013-5:mDL",
        "issuer": {
          "id": "did:issuer:us-ca-dmv",
          "authority_name": "California DMV"
        },
        "evidence": [
          {
            "type": "credential_presentation",
            "verifications": { "issuer_signature_valid": true }
          }
        ]
      }]
    },
    "_metadata": { "verification_id": "vrf_mdl_us_samsung_789" }
  }
}
